Nanyang Xichuan 180t/h Crushing Plant: 3-Day Installation & 20-Day ROI Payback

2024 Nanyang Xichuan 180 t/h Crushing Production Line Case Study: Rapid 3-Day Assembly & 20-Day Payback

Introduction

In 2024, a high-efficiency crushing production line with an hourly capacity of 180 tons officially commenced operations in Xichuan County, Nanyang City, Henan Province. This project has become a benchmark—both locally and across the industry—thanks to its groundbreaking installation speed and astonishing return on investment (ROI). It took just three days from equipment arrival to full operation, and the entire investment was recouped in a mere 20 days of running! Today, we take an in-depth look at the design highlights and core configuration of this "extraordinary production line."

I. Project Overview

Location: Xichuan County, Nanyang City, Henan Province

Commissioning Date: 2024

Design Capacity: 180 tons/hour

Project Features: Fully modular design, all-bolted assembly, no on-site welding, low-center-of-gravity structure for rapid installation.

II. Core Equipment Configuration

Following rigorous selection and calculation, this production line incorporates industry-leading, high-efficiency crushing and screening equipment, ensuring high throughput and superior product quality:

Vibrating Feeder: GF0935 Feeder — Low feed angle ensures smooth, stable material intake and prevents clogging.

Primary Crusher: C69 Jaw Crusher — The core unit for primary crushing; features a high reduction ratio and powerful crushing capability.

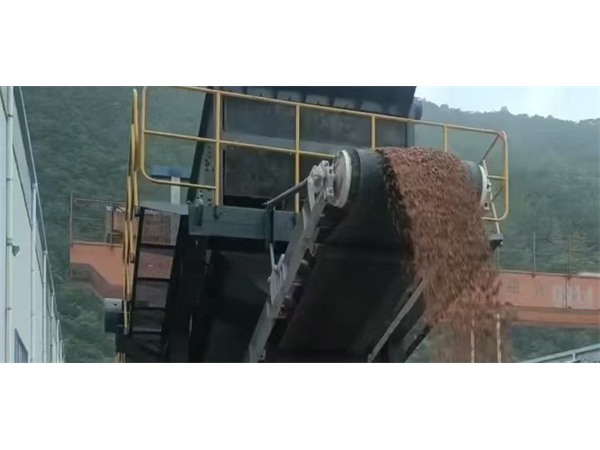

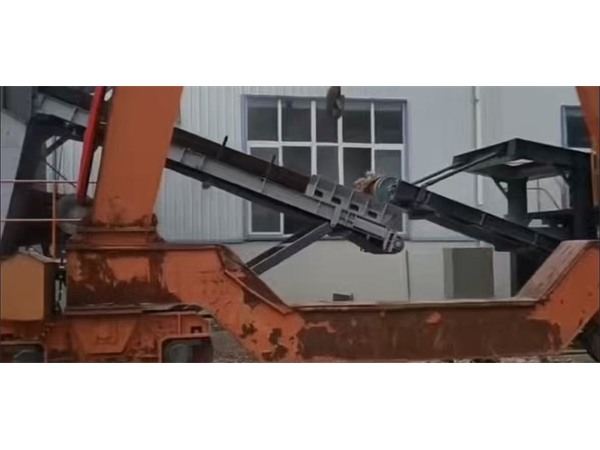

Material Conveying: B800 Conveyor Belt — Wide-belt design for efficient linkage between equipment stages.

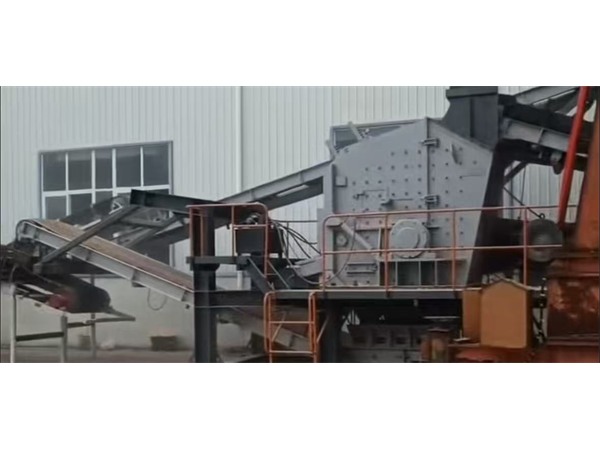

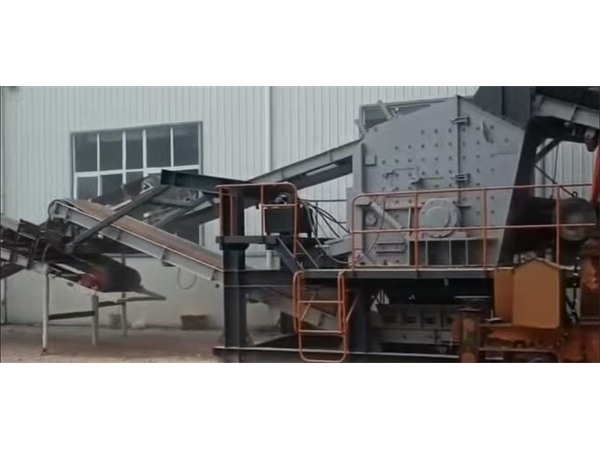

Secondary Crusher: PF1315 Impact Crusher — A champion of secondary crushing; produces aggregates with excellent particle shape.

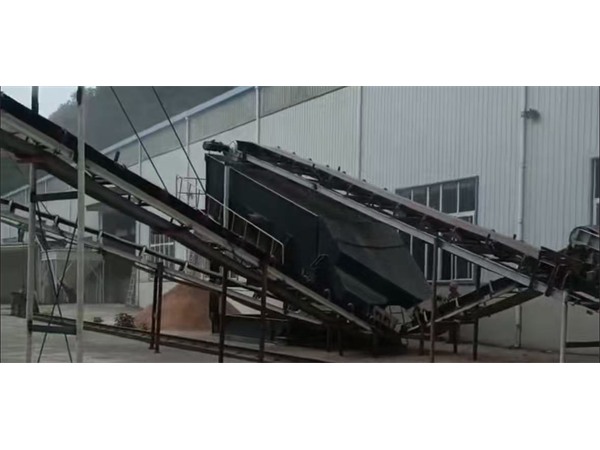

Vibrating Screen: 3YK1860 Vibrating Screen — Large-area, three-deck screen for precise grading and high screening efficiency.

III. In-Depth Analysis of Core Project Advantages

1. Ultra-Fast Installation: Completed in 3 days with zero on-site welding

While traditional production lines often take months to install, this line utilizes an advanced modular steel structure design, with the entire equipment set pre-assembled before leaving the factory. On-site assembly is akin to "building with blocks," utilizing high-strength bolted connections exclusively—eliminating the need for any on-site welding. This not only removes fire safety hazards but also compresses the installation period to just three days, enabling the client to seize market opportunities rapidly.

2. Rock-Solid Stability: Low Center of Gravity and Robust Structure

The equipment features a low-center-of-gravity chassis and a precision-engineered, fully bolted frame, effectively absorbing and dissipating the intense vibrations generated by the jaw and impact crushers during operation. This ensures exceptionally smooth performance, extends equipment lifespan, and significantly reduces long-term maintenance and infrastructure costs.

3. Efficient Feeding: Low-Angle Design

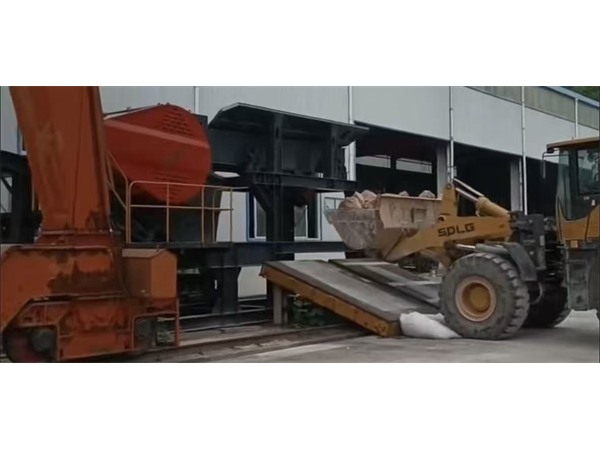

The installation of the GF0935 feeder was specifically optimized for raw material loading; its ultra-low feed inclination makes loading via front-end loaders easier and safer. This design effectively prevents issues such as material jamming or spatter caused by large rocks, ensuring the entire production line operates continuously at full capacity from the very start.

4. Profitability Miracle: Investment Recouped in 20 Days

Thanks to optimal equipment selection, rapid installation with zero rework, and high operational uptime, the project achieved full production capacity immediately upon startup. With a stable output of 180 tons per hour, the client recouped their entire investment in just 20 days of operation, generating remarkable economic returns.

IV. Conclusion

The success of the 180 t/h crushing production line in Xichuan, Nanyang, perfectly demonstrates the power of combining "rapid modular installation" with "scientific equipment configuration." It resolves the pain points associated with traditional aggregate plant construction—such as long lead times and poor site adaptability—while offering investors an optimal solution characterized by high yields and rapid returns. This case study serves as an excellent reference for clients seeking quick startup, prioritizing return on investment (ROI), and demanding high equipment stability.
