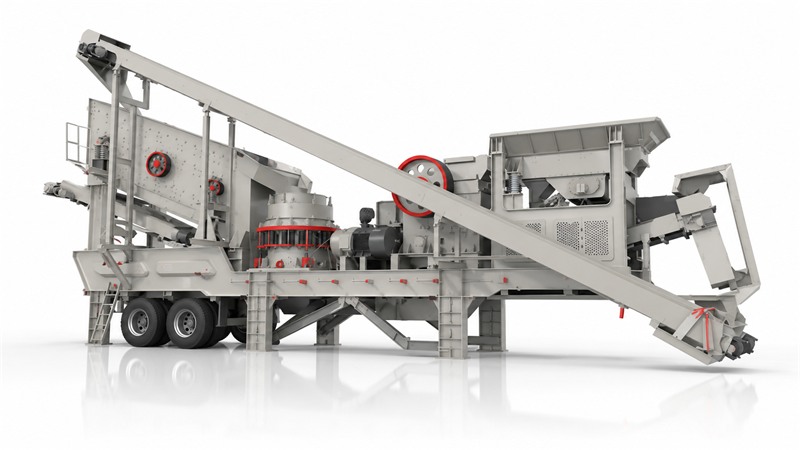

NK 4-in-1 Tire Mobile Crushing Plant

Product Overview

The NK series 4-in-1 tire-type mobile crushing plant is a fully integrated crushing and screening solution that combines a vibrating feeder, jaw crusher (primary), secondary crusher (impact crusher or cone crusher), and vibrating screen on a single tire-mounted chassis. Designed for small to medium capacity operations (30-180 t/h), it eliminates the need for on-site foundation construction and can be towed to the work site and put into operation immediately. The plant features an on-board belt conveyor system that connects all crushing and screening stages, enabling closed-circuit material flow without additional transfer equipment. The jaw crusher handles primary coarse crushing, while the secondary crusher — available in either impact (PF series, for medium-hard materials like limestone) or cone (HP series, for hard materials like granite) configurations — ensures precise finished product gradation. The integrated vibrating screen classifies output into multiple size fractions on-site. With 5 standard models covering capacity ranges from 30 to 180 t/h, the NK 4-in-1 plant is ideal for aggregate producers, construction waste recyclers, and small-scale mine operators who need a complete crushing line that can be relocated between sites without disassembly.

Features

• Integrated 4-in-1 design: feeder + jaw + secondary crusher + screen on one chassis
• On-board belt conveyors — closed-circuit material flow, no transfer equipment needed
• Tire-mounted, towable — no foundation required, ready to operate on arrival
• Secondary crusher selectable: PF impact (medium-hard) or HP cone (hard materials)
• Hydraulic outriggers for stable operation without concrete pad
• 5 models covering 30-180 t/h capacity range
• Compact footprint — single-vehicle transport between sites

Technical Specifications

Applications
