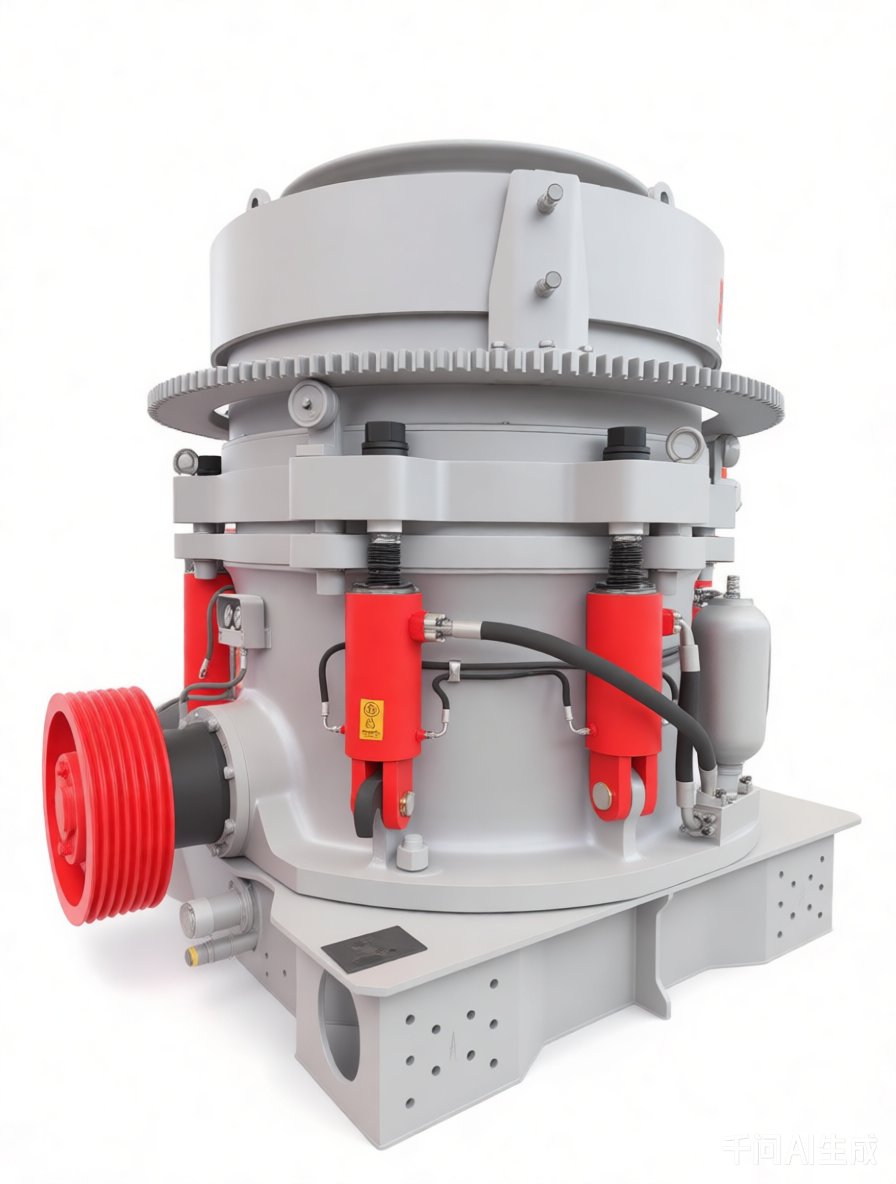

Multi Cylinder Hydraulic Cone Crusher

Name: Multi Cylinder Hydraulic Cone Crusher
Brand: Meishuo Intelligent Equipment

High-efficiency secondary/tertiary crusher — high capacity, excellent particle shape, high automation.

#multi-cylinder cone crusher#high-efficiency crusher#mining crushing

Product Overview

The multi-cylinder hydraulic cone crusher uses a fixed main shaft with a small eccentric sleeve rotating around it. The optimized chamber design and kinematic parameters significantly boost throughput at the same energy consumption. The multi-cylinder hydraulic protection system is highly responsive with reliable tramp-iron protection. Particularly suitable for high-volume aggregate production and secondary/tertiary crushing in metal mines.

Features

Fixed main shaft design — high load capacity
Optimized chamber — high throughput
Multi-cylinder hydraulic protection — strong tramp-iron handling
Fully automatic control system
Easy wear-part replacement

Technical Specifications

Model	Cavity Type	Open Side Feed Opening (mm)	Close Side Feed Opening (mm)	Min Discharge Opening (mm)	Capacity (t/h)	Power (kW)
HP300	C1 (Extra Coarse)	265	230	25	220-440	220
	C2 (Coarse)	240	210	20	190-380	220
	M (Medium)	190	150	15	175-320	220
	F1 (Fine)	145	105	11	110-260	220
	F2 (Extra Fine)	120	80	8	100-240	220
HP540	C1 (Extra Coarse)	370	330	38	425-790	400
	C2 (Coarse)	320	290	28	380-700	400
	M (Medium)	245	210	22	330-605	400
	F1 (Fine)	180	130	13	270-535	400
	F2 (Extra Fine)	150	95	10	200-430	400
HP800	C1 (Extra Coarse)	450	352	38	545-1200	630
	C2 (Coarse)	373	298	32	495-1050	630
	M (Medium)	340	265	25	470-950	630
	F1 (Fine)	280	230	16	385-730	630
	F2 (Extra Fine)	235	150	10	310-600	630
