Custom-Built for Clients: Integrated Containerized Central Control Room for Mining Crushing Production Lines Delivered. In the sectors of sand, aggregate, and mining operations, production sites often present challenging conditions, including high levels of dust, significant noise, and unpredictable outdoor environments.
Recently, our company completed the assembly and internal electrical system commissioning of a custom-designed, integrated containerized control room for a crushing operation. Tailored to the client’s specific on-site workflows and operational requirements, the unit is now ready for shipment to the project site.

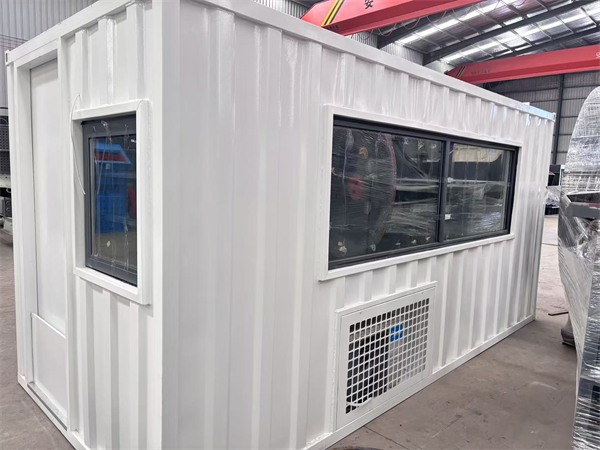

I. Structural Design: High Protection Meets Excellent Visibility. Container-Style Steel Structure: Built using standard corrugated steel shipping container panels and a robust steel frame, the unit offers high structural rigidity, facilitating long-distance transport and precise crane positioning. The exterior features an anti-corrosive, weather-resistant coating, ensuring durability in harsh outdoor climates. Wide-Angle Observation Windows: The front is equipped with large, tempered, double-glazed observation windows, complete with retractable sunshades. From the control console, operators can directly monitor the status of the primary crusher, feeders, and belt conveyors, balancing a wide field of view with effective sound insulation and noise reduction. Access and Ventilation: The unit includes a sealed, wind-resistant entry door and a small window for natural light. Ventilation louvers are integrated into the lower section to dissipate heat from internal electrical components. Provisions for air conditioning and ventilation systems are also included to ensure optimal air quality, temperature, and humidity within the enclosed space.

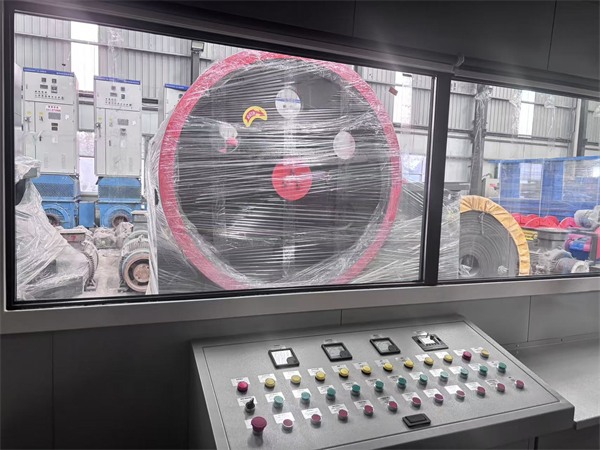

II. Electrical Integration: Intuitive Control and Centralized Management. Ergonomic Centralized Control Console: Designed with an optimal viewing angle, the control panel is logically organized according to equipment startup sequences. It features indicator lights, emergency stop switches, control knobs, and current/voltage monitoring instruments, enabling individual machine operation, interlocked startup/shutdown, and real-time performance monitoring for the entire production line. Embedded Electrical Distribution and Control Cabinets: A series of high-protection-rated control cabinets are integrated along the rear of the control room. Wiring is neatly routed, and electrical safety warning labels are clearly displayed. Power distribution and low-voltage signal control systems are arranged in separate zones, with access doors that open fully to facilitate routine troubleshooting and maintenance by on-site technical personnel. Comfortable Workspace: The interior features smooth, anti-slip flooring and comes equipped with an ergonomic office chair, providing on-site operators with a clean, dust-resistant, and relatively soundproof independent working environment.
III. On-site Value and Operational Flexibility: Pre-commissioned for Rapid Deployment—The entire control room undergoes internal cabinet wiring and basic electrical testing at the factory. Upon arrival at the site, it only requires connection to the main external power supply and on-site power cables to be ready for operation, significantly reducing the time spent on outdoor field wiring. Customizable Options: The unit can be tailored to specific site requirements with features such as PLC automation control systems, industrial touchscreens, integration for surveillance camera feeds, industrial-grade climate control (HVAC), and UPS backup power systems. We are committed to addressing the specific operational needs of our clients, offering comprehensive equipment solutions—from the primary crushing machinery to the complete electrical control system. We invite investors in the mining and aggregate industries to discuss their technical requirements and customization needs with us.
